Plansee's Newly Developed Mo-Cu R670 Prevents Cracks in LED Semiconductor Layers

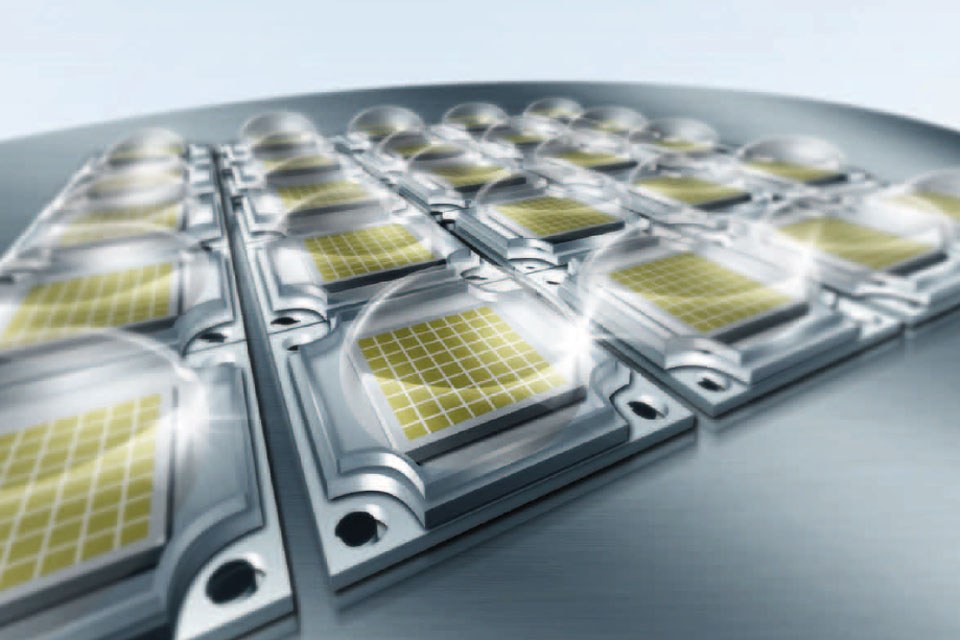

With Mo-Cu R670, PLANSEE has developed a new molybdenum-copper composite material for semiconductor wafer substrates. The material ensures optimized heat dissipation in LED chips.

In the most commonly used process for the production of blue spectrum chips - including white LEDs - gallium nitride-based semiconductor layers (GaN) are grown on sapphire substrate (Al2O3) using epitaxial growth methods like MOCVD. A metallic wafer, intended for the dissipation of heat, is then bonded to the semiconductor layers at high temperatures. Stresses caused by different coefficients of thermal expansion can lead to cracks in the semiconductor layers. To prevent these defects, the metal wafer ideally possesses the same coefficient of thermal expansion (CTE) as sapphire.

Molybdenum is commonly used for such wafer substrates. This material offers good thermal conductivity and is very heat-resistant. However, molybdenum has a lower coefficient of thermal expansion than sapphire (Al2O3). That’s why we developed wafer substrates made from the molybdenum-copper composite material R670 especially for sapphire-based and high temperature-bonded LED chips. R670 has a thermal conductivity of 170 W/mK and, with 6.7 ppm/K, the same coefficient of thermal expansion as sapphire (Al2O3).

For additional information please visit

About Plansee:
PLANSEE can supply Mo-Cu wafer substrates with coatings made from nickel-gold, ruthenium, chromium, silver and other interface materials. These coatings protect the wafer substrate against corrosion and optimize its surface properties for the subsequent bonding process.
As one of the world's leading manufacturers of refractory metals and composite materials, PLANSEE supplies metallic wafer substrates for heat dissipation and also numerous other components for the production of LED chips and LED packages. These include furnace components and molybdenum and tungsten crucibles for sapphire single crystal growth, components for MOCVD/MBE reactors, evaporation boats and coils for metallic mirror or barrier layers and base plates for improved thermal management of high-power LEDs. Get to know more about our high performance materials for the LED industry and our wafer carriers.
