Home > Components & Tools > LEDs & OLEDs > Samsung Achieves 220 Lumens per Watt with New Mid-Power LED Package
White LEDs | Featured | LEDs | Components | Jun 21, 2017

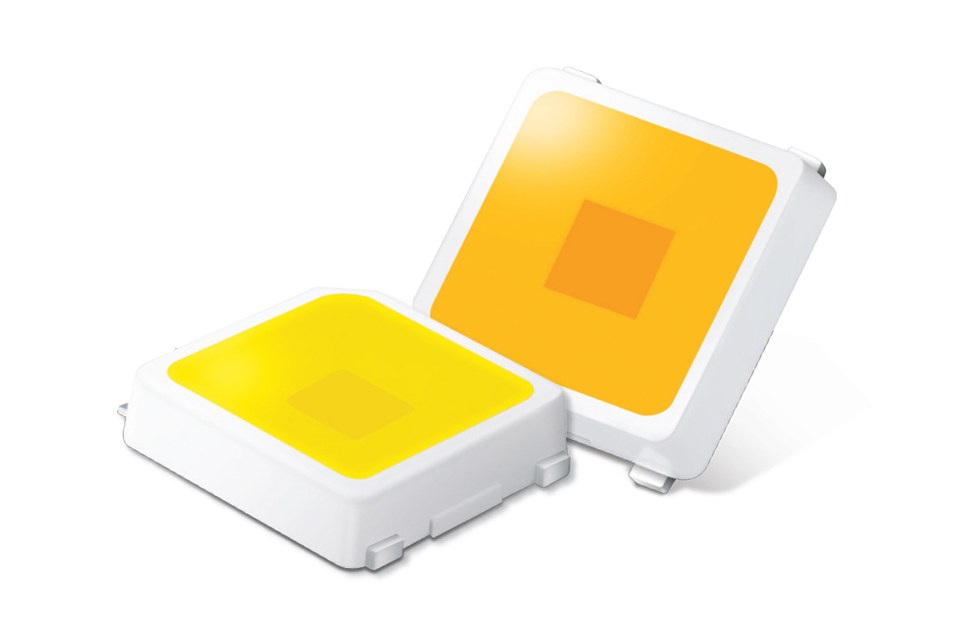

Samsung Achieves 220 Lumens per Watt with New Mid-Power LED Package

Samsung Electronics has begun mass producing a new mid-power LED package, the LM301B, which features the industry’s highest luminous efficacy of 220 lumens per watt. Samsung was able to achieve its industry-leading efficacy (@ 65mA, 5000K, CRI 80+) by incorporating an advanced flip-chip package design and state-of-the-art phosphor technology. The package is well suited for a range of LED lighting applications including ambient lighting, downlights and most retrofit lamps.

Samsung Electronics has begun mass producing a new mid-power LED package, the LM301B, which features the industry’s highest luminous efficacy of 220 lumens per watt. The package is well suited for a range of LED lighting applications including ambient lighting, downlights and most retrofit lamps.

Samsung was able to achieve its industry-leading efficacy (@ 65mA, 5000K, CRI 80+) by incorporating an advanced flip-chip package design and state-of-the-art phosphor technology. The LM301B’s flip-chip design uses a highly reflective layer-formation technology to enhance its light efficacy at the chip level. Also, a complete separation between its red phosphor film and green phosphors allows minimal interference during the phosphor conversion process, resulting in higher efficacy than conventional phosphor structures. These combined technology enhancements enable a 10-percent increase in overall efficacy compared to competing 3030 platform packages without compromising on premium-quality light output.

“With our LM301B, we are able to deliver even greater mid-power value and help lower the total cost of ownership for LED lighting manufacturers,” said Jacob Tarn, Executive Vice President of LED Business Team at Samsung Electronics. “Thanks to advancements like the LM301B, Samsung will continue to drive innovation in next-generation LED technologies.”

Samples of the LM301B are available now.

For more information about the LM301B, please visit
http://www.samsung.com/global/business/led/products/led-component/mid-power

About Samsung Electronics Co., Ltd.
Samsung inspires the world and shapes the future with transformative ideas and technologies. The company is redefining the worlds of TVs, smartphones, wearable devices, tablets, digital appliances, network systems, and memory, system LSI and LED solutions. For the latest news, please visit the Samsung Newsroom at news.samsung.com.
