Products, Materials & Tools | Nov 21, 2008

GK Technik Provides New MCPCB for Achriche for EU

GK Technik announces today, that they have designed a new MCPCB, which fits to the Acriche LED from Seoul Semiconductor, in the 230V-Version 322x and 323x.

"We have made a new, very careful design, to continue the VDE-, CE- and TUV proven design from SSC", states Mr. Juergen Krueger, co-founder of Fa. GK Technik. "The new aluminum MCPCB can be directly connected to 230V AC. With a creepage of 6.3mm we address all customers who needs to make very reliable and save products."

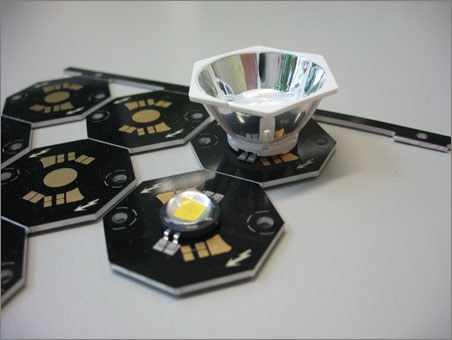

The new MCPCB is a combined design, it contains the needed resistors and fits to the available lenses for 26,5mm diameter. The shape is an octagon with side-to-side distance of 35mm. It contains two holes for M3-screws. This new octagon MCPCB can be mounted together with all available lenses without modifications. The panel contains 30 pieces of this MCPCB, and the data for automatic populating, and for the solderpaste-stancel as well, are available free of charge. This new MCPCB is available from stock.

Contact Fa. GK Technik today for your quotation! Also, do not hasitate to ask for your own OEM-design.

About Fa. GK Technik:
Established 2004, Fa. GK Technik has made a great progress in designing MCPCBs. The designs are all made precisely in Germany, while the production is made very accurate and cost-effective in China. All used materials are RoHS-conform and UL-listed. Production facility in China is ISO9000-certified. Fa. GK Technik produces every week thousands of MCPCBs and is your reliable partner for your designs.
