Products, Materials & Tools | Mar 16, 2010

TYCO Electronics releases ROHS-Compliant IDC SSL Connectors for Quick, Tool-Less Termination of Discrete Wires

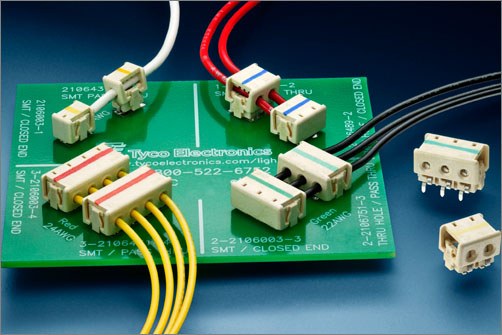

Tyco Electronics today released the new IDC SSL connector for quick, tool-less termination of discrete wires onto LED printed circuit boards (PCBs). The product terminates 18 through 24 AWG solid and stranded wire utilizing insulation displacement technology to eliminate the labor-intensive task of pre-stripping wires and soldering.

The robust design of the IDC SSL connector suits harsh environments in the solid state lighting (SSL) industry. Specific LED applications include: lighting controls, general illumination fixtures and interconnection of strings in PCB light modules. Additionally, the product supports various non-lighting applications that require the attachment of discrete wire leads to PCBs. The RoHS-compliant connector -- available in one, two, three and four positions -- meets UL 1177 specifications.

Product offerings include SMT/thru-hole and closed-end/feed-thru configurations. The closed-end version contains a “viewing” window to ensure that the wire is fully seated and secure after termination.  The product, built with 94 V0-rated high-temperature resistant thermoplastic, enables reflow processing and features rounded corners to minimize shadowing. Wire gauges are color coded to enable precise wiring.

For more information on the IDC SSL connector, visit http://www.tycoelectronics.com/products/IDCSSLConnector , or contact Tyco Electronics’ Product Information Center at http://www.tycoelectronics.com/help .

About TYCO Electronics:
Tyco Electronics Ltd. is a leading global provider of engineered electronic components, network solutions, specialty products and undersea telecommunication systems, with fiscal 2009 sales of US$10.3 billion to customers in more than 150 countries. We design, manufacture and market products for customers in a broad array of industries including automotive; data communication systems and consumer electronics; telecommunications; aerospace, defense and marine; medical; energy; and lighting. With approximately 7,000 engineers and worldwide manufacturing, sales and customer service capabilities, Tyco Electronics' commitment is our customers' advantage. More information on Tyco Electronics can be found at http://www.tycoelectronics.com/.
