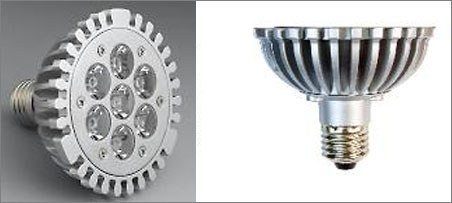

American Opto Plus’ E27B-7W Retrofit LED Lamp

American Opto Plus’ E27B-7W is specailly designed to retrofit into standard E27 fixtures and housing. Each of the lamp features a single 7 Watt LED with enhanced optics to achieve the highest light intensity.

In addition, the aluminum housing makes the heat disspation more effective. The E27B series is a cost-effective solution for designers who want to quickly take advantage of the SSL technology.


Main parameters:
Parameter                             Value
Power Spec.
Power Supply Voltage         AC85~260V
Power Consumption             7W
Optical Spec.
Operating Life                     >50,000Hr
Environment Spec.
Body Temperature               <53°C
LED Temperature                <53°C
Total Length                         82mm    (Including Pin)
Beam Angle                         30 Degrees
Light Attenuation Quotiety   10 %/1KH
Net Weight                           300g
Body Material             Aluminium Housing
LED Quantity             7pcs High Power LED
Base                                     E27
Color Selection:
Part Number
Color
Wavelength
Color Temp.
(Kelvin)
Brightness
E27B-7W-W
White

6000
490 Lm
E27B-7W-WW
Warm White

3200
350 Lm
E27B-7W-E
Red
623

420 Lm
E27B-7W-G
Green
525

490 Lm
E27B-7W-B
Blue
470

220 Lm
E27B-7W-Y
Amber
592

490 Lm
