Products, Materials & Tools | Sep 26, 2013

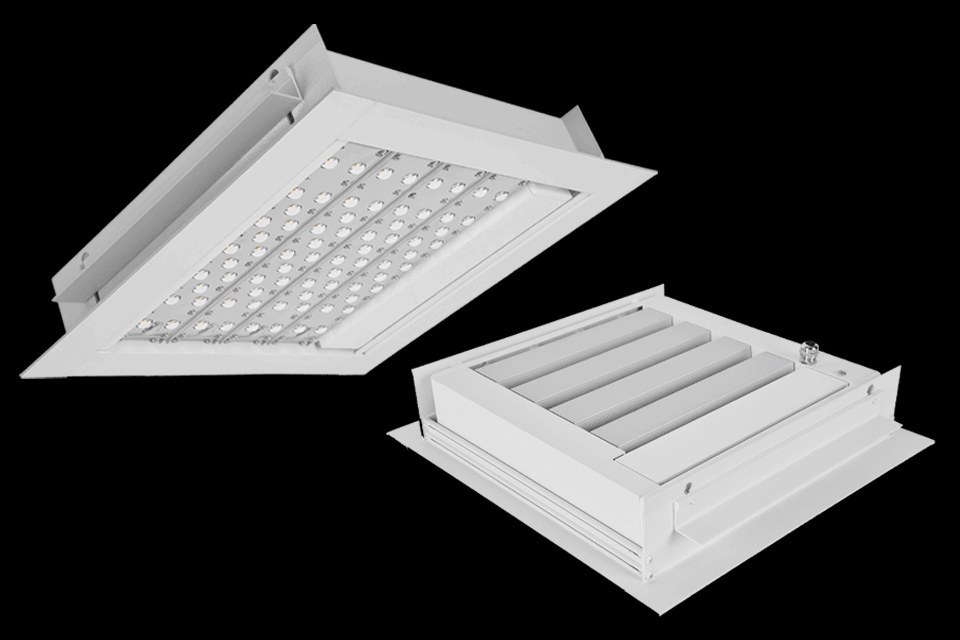

HTI LED Canopy Light 120W Replaces 350W MH in Petrol Station Lighting

HTI introduces its brand new LED Canopy Light equipped with Philips Lumileds chip and Philips Advance power supply, IP66 rated, explosion-proof, 5 years warranty. IES files are available. Integrated modular design supports excellent heat sink and easy replacement for future maintenance. The power supply is built in the chamber with better protection than external ones.
Technical data:
LED Chip: Philips Lumileds (LM80 test report available)
Power Supply: Philips Advance (UL, CSA, CE, RoHS, ENEC05 approved)
Input Voltage: 120-277Vac; 50/60Hz
LED Efficiency: >130Lm/W
Lamp Efficiency: >98Lm/W
IP Rating: IP66
Power Factor: >0.95
CRI: Ra >70 (Optional: Ra >75)
CCT: 5000K (Optional: 3000K, 4000K, 6000K, etc)
Warranty: 5 years for the whole lamp
Light Distribution: Symmetric (Optional: Asymmetric)
Housing Color: White (Optional: Gray, Black)
IES files: Available

For product inquiry, please contact: info@hti-global.com
To discover more, please visit: www.hti-global.com

About HTI LED:
HTI LED is a professional manufacturer of high quality LED lighting products which have been exported to more than 30 countries. Our optimized LED lights are widely used in Project Lighting, Commercial Lighting, Industrial Lighting. If you would like to know more about our products such as LED Canopy Light, LED Street Light, LED Tunnel Light, LED Flood Light, LED High Bay Light, LED High Mast Light, please visit our website: www.hti-global.com.
